· Integrated 175° elliptical dual-beam lens ensures uniform illumination.
· High luminous efficacy up to 115 lm/W.
·Max. 10 units cascaded; cuttable, adjustable spacing, customizable.
· DC12/24V low voltage; IP20/IP65 protection options.
· Simple installation, adjustable spacing, custom available.
Detailed Specifications
|
Model |
STH-F12T950W12B-OS |
|
Voltage |
DC12/24V |
|
Power |
12W |
|
LED Type |
SMD2835 |
|
CCT |
2700K-12000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
115lm/W |
| Product Size |
956*38*14.3mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
12PCS |
| Max. Connection |
10PCS |

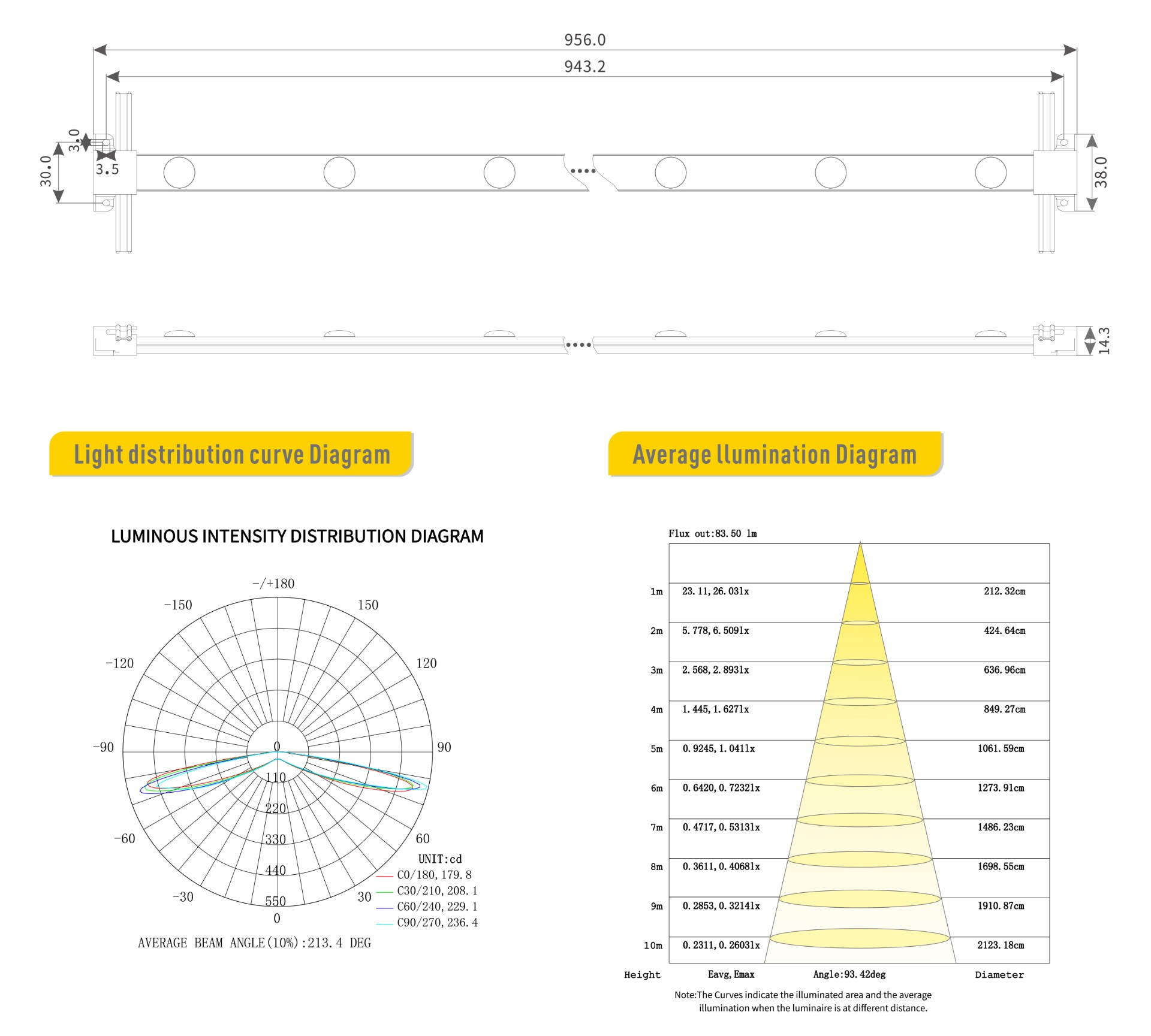

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
