· Integrated 175° elliptical dual-beam lens ensures uniform illumination.
· High luminous efficacy up to 120 lm/W.
· Reverse injection molding, IP20/65 waterproof for wide applications.
· Low-voltage DC 24V supported. Max 10 light strips per cascade connection.
· Simple installation, adjustable spacing, custom available.
Detailed Specifications
|
Model |
STH-F24T920W12B-0S |
|
Voltage |
DC24V |
|
Power |
14.4W |
|
LED Type |
SMD3030 |
|
CCT |
2700K~12000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
120lm/W |
| Product Size |
918*21.5*7.9mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
12PCS |
| Max. Connection |
10PCS |

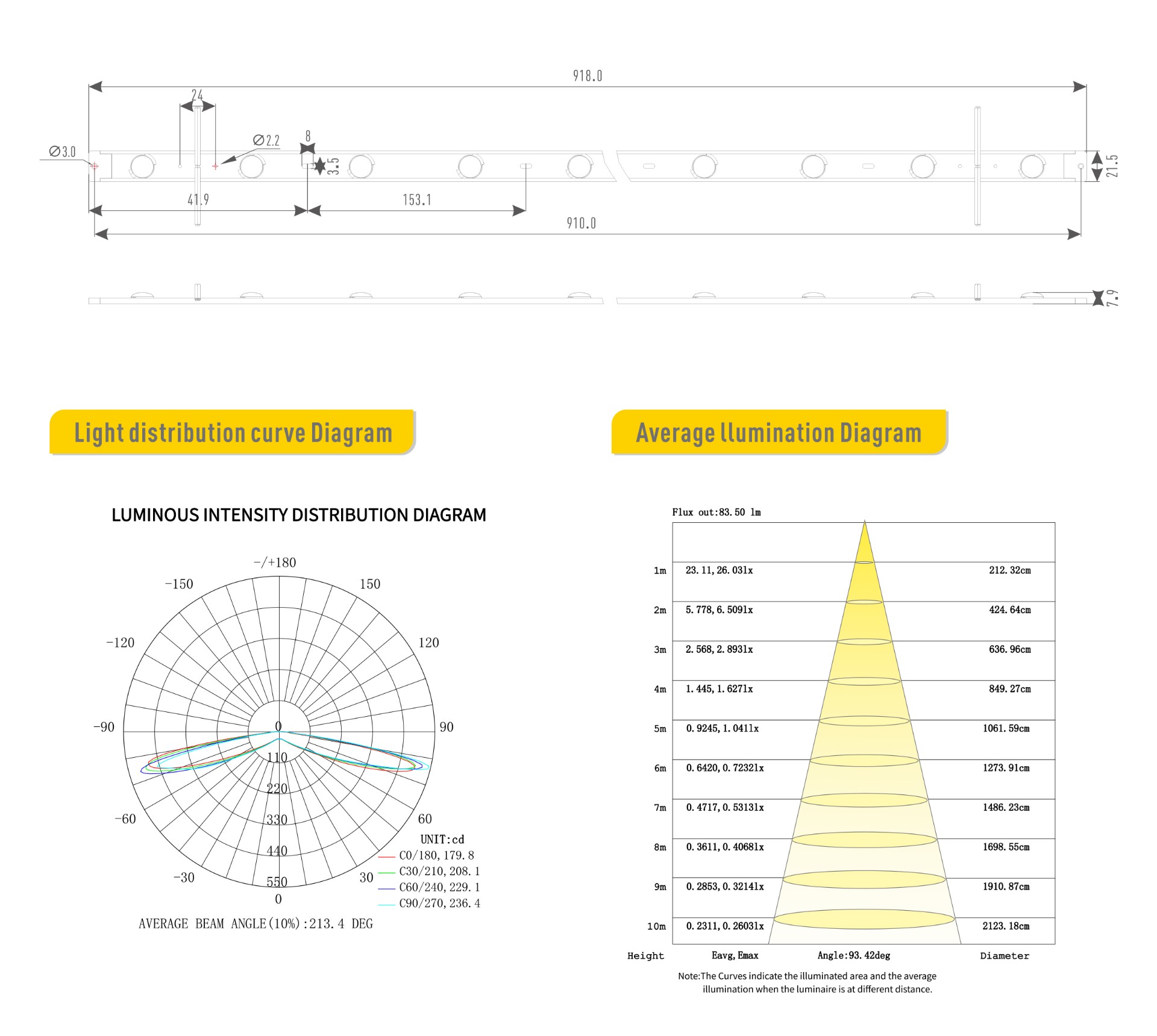

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
