·Integrated 15*50° elliptical dual-beam lens ensures uniform illumination.
· High luminous efficacy up to 105 lm/W.
· Aluminum heat sink for improved heat dissipation and reliability.
· DC24V low voltage; IP20/IP65 protection options.
· Individually cuttable, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F24T495x19W18B-OS |
|
Voltage |
DC24V |
|
Power |
21.6W |
|
LED Type |
SMD3030 |
|
CCT |
2700K-12000K |
|
CRI |
>80 |
|
Angle |
15*50° |
|
Light Eff |
105lm/W |
| Product Size |
1010*21.5*11.3mm(L*W*H) |
| Material |
AL+PC |
|
LED Count |
18PCS |
| Max. Connection |
1PCS |

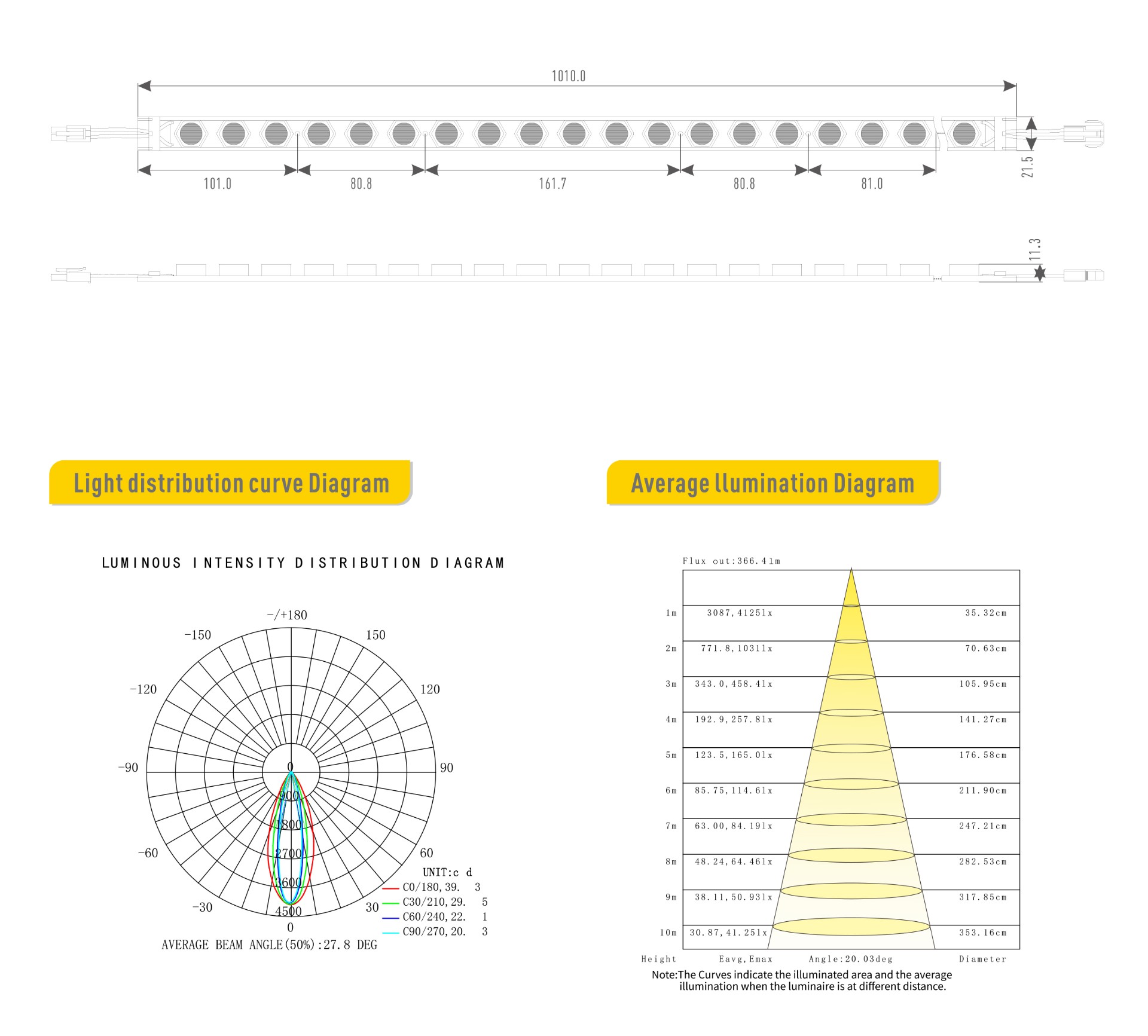

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
