·Integrated 15*40° elliptical dual-beam lens ensures uniform illumination.
· High luminous efficacy up to 105 lm/W.
· Reverse injection molding. IP65 waterproof for wide applications.
· Low-voltage DC24V supported. Max 1 light strips per cascade connection.
· Simple installation, adjustable spacing. custom available.
Detailed Specifications
|
Model |
STH-F24T450x25W10W-OS |
|
Voltage |
DC24V |
|
Power |
20W |
|
LED Type |
SMD3030 |
|
CCT |
2700K-12000K |
|
CRI |
>80 |
|
Angle |
15*40° |
|
Light Eff |
95lm/W |
| Product Size |
490*25*14.7mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
20PCS |
| Max. Connection |
1PCS |

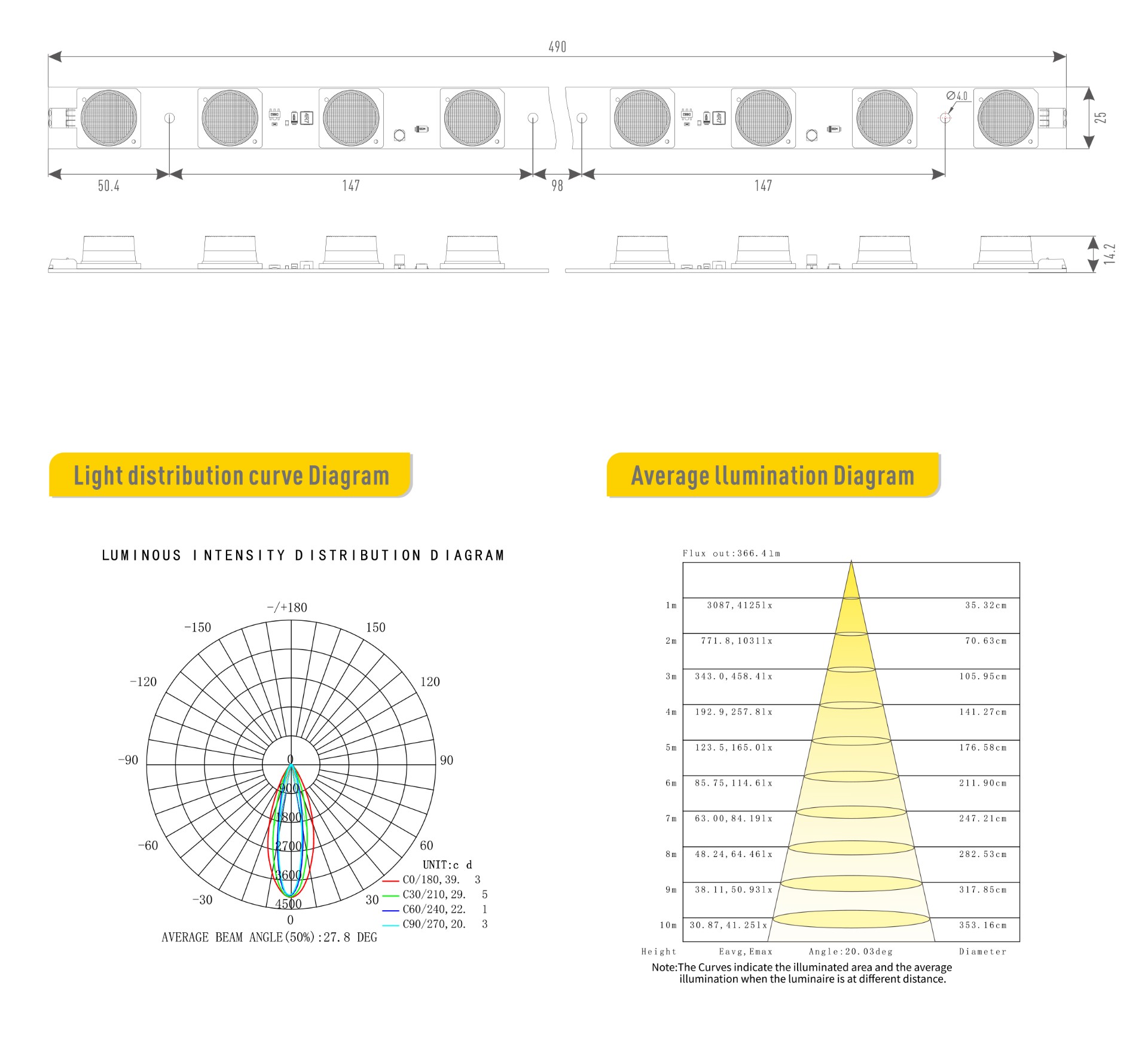

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
