·Integrated wide-angle lens (175° beam) for even light distribution .
· High luminous efficacy: up to 110 lm/W.
· Reverse injection molding, IP65 rated for reliability.
· Safe DC24V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F24T4435W1B-OS |
|
Voltage |
DC24V |
|
Power |
1.2W |
|
LED Type |
SMD3030 |
|
CCT |
3000K~12000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
110 lm/W |
| Product Size |
44*35*7.3mm (L*W*H) |
| Material |
PVC+PC |
|
LED Count |
1PCS |
| Max. Connection |
21PCS |

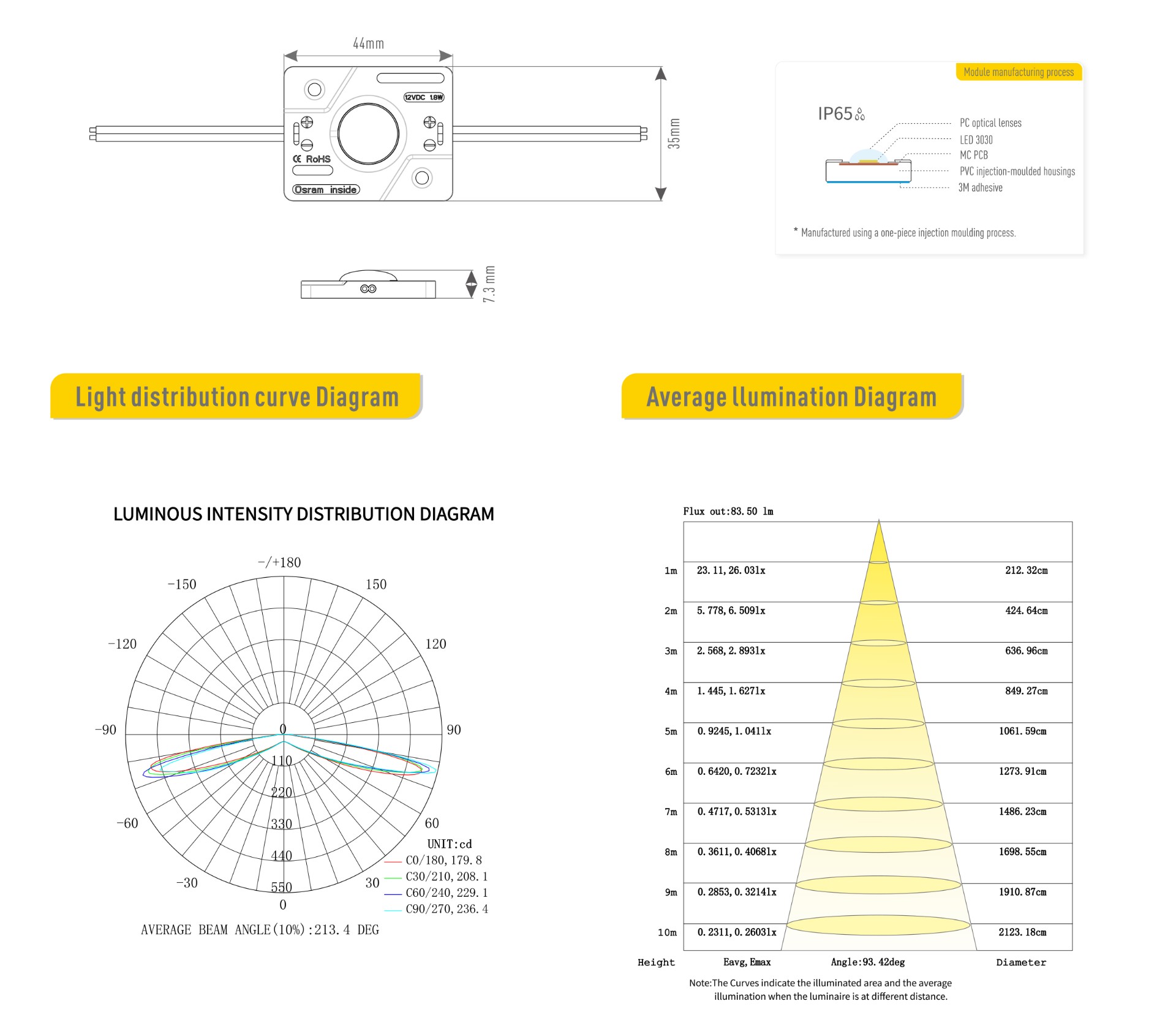

Product Dimension Diagram
Specifications
