Small size, only 4mm light-emitting surface. The light-emitting lines, which can well illuminate the contour lines at home. Applicable to: indoors, rooms, etc.; According to the flexible characteristics of products, different shapes can be molded at will.
Detailed Specifications
|
Model |
STH-0408 |
|
Working voltage（V DC） |
12 / 24V DC |
|
Power（W/m） |
11W |
|
Luminous flux（lm/m） |
350-400 |
|
CCT/Color |
2200K-6000K R G B Y |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 SMD 2216 |
|
LED Qty（LEDs/m） |
126(Single Color) / 240(Adjustable CCT) |
|
Cutting length（mm） |
23.8/55.5(Single Color) 20/40(Adjustable CCT) |
|
Minimum bending（mm） |
25 |
|
Control mode |
Single Color/Adjustable CCT |
|
Light Angle（°） |
120° |
|
IP Rating（IP） |
IP67 |

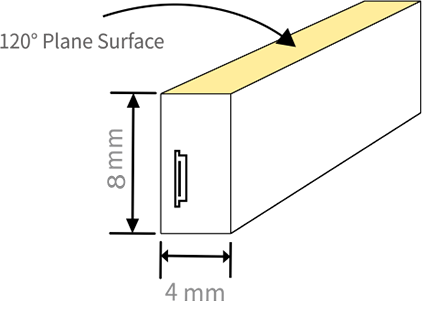

Product Dimension Diagram

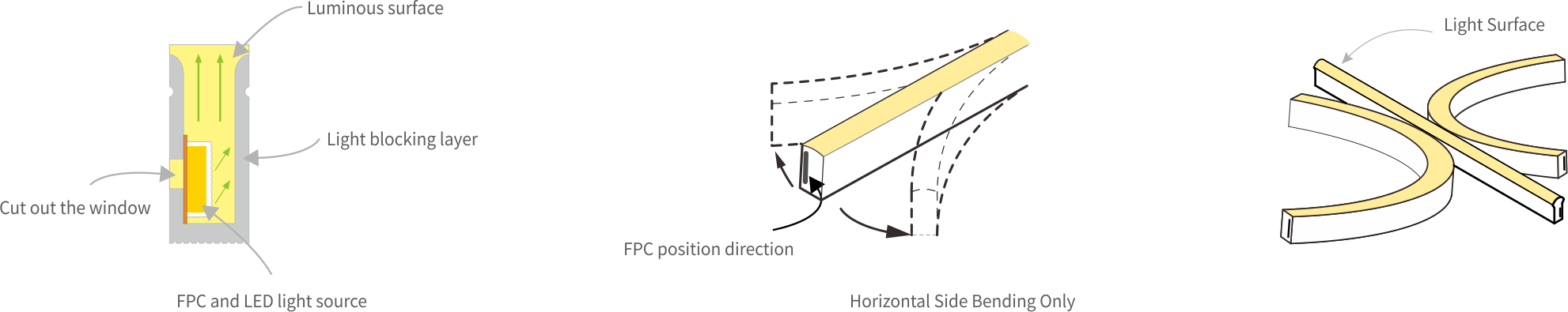

Exploded View

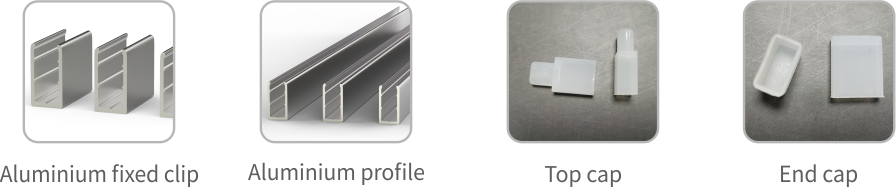

Installation Accessories
Scope of Application
Widely used in indoor home decoration, jewelry, precious clocks and shopping mall counters,cosmetics counters, indoor background layout and other lighting.
Specifications
