EdgeLEDLightBar9LEDs-TaionLEDLighting

LED Rigid Bar/

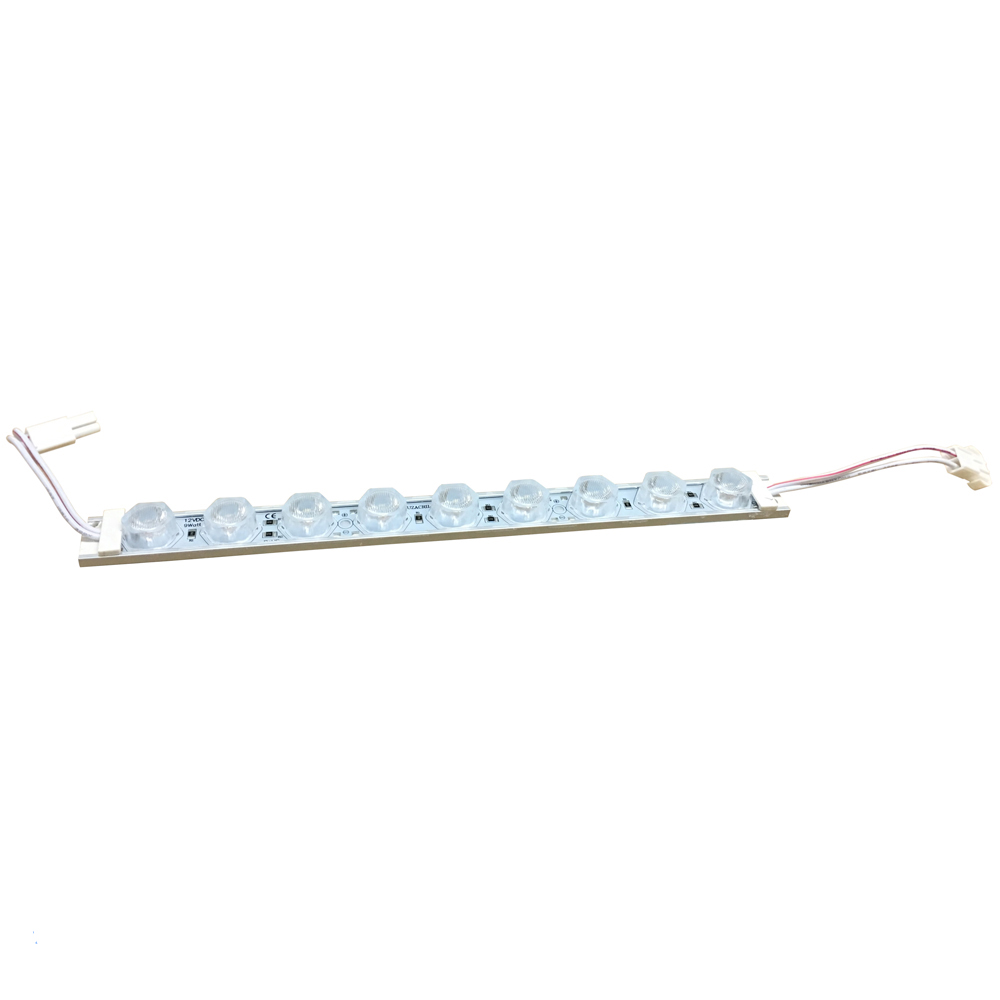

Edge LED Light Bar 9LEDs

  • STH-F24P600W1L09C39
  • Product ID: 10.8W NICHIA LED Edge-Lit Bar
  • LED Chip: high quality 3030 LED Nichia/Osram
  • Lumens:1000~1100LM/PCS
  • Lens:  optical lens 45*15degrees
  • Material: Aluminum PCB & Silicone glue
  • High efficacy up to 120lm/W
  • Silicone waterproof IP65
  • CE RoHS approved

  • Product Details

NICHIA 10.8W Edge-Lit LED Light Bar For Double-sided Light boxes

Product name: Nichia Edge-Lit LED BarApplication:For double-side sign box illumination
LED type: NICHIA SMD3030 LEDs 1.0WattLED quantity: 9pcs
Physical dimension:390mm (L)*21.5mm (W)*11.5mm (H)Operating voltage: 24VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 10.8W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:1000~1100LM/pcs
Beam angle: 45º*15ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant voltage
Weight:0.035KGPackage: 300pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  6pcsMaterial: Silicone Glue & Aluminum PCB
Depth/Thickness of Signs:  6~12cm
